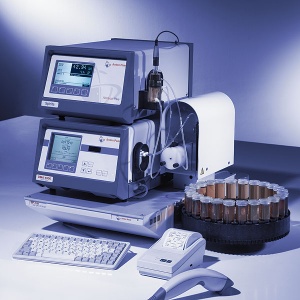

Anton Paar Alcohol Analysis System: Alcolyzer Plus Spirits

Analyze spirits efficiently and economically in the laboratory and at the production line using the alcohol analysis system Alcolyzer Plus Spirits. Alcolyzer Plus Spirits determines the alcohol content (35 to 65 %vol), color, and pH value of alcoholic beverages. In combination with a density meter, the system additionally determines the total extract of the sample.

Alcohol analysis system with patented NIR measuring method

  • Highly accurate measurement of the alcohol content of your spirits in the concentration range 35 to 65 %vol
  • Optional pH and color measurement
  • For spirits such as whisky, cognac, brandy, vodka, gin, tequila and rum

Time-saving and user-friendly

  • Ready to measure after only 10 minutes
  • Only 3 to 4 minutes from filling to the result
  • Accurate, fully automatic thermostatting via an integrated solid-state thermostat

Rapid and easy adjustment

  • Adjustment/calibration with water and an alcohol/water solution
  • One single adjustment is valid for all your samples

Use at the production line or in the lab

  • Integrated peristaltic pump for use at the production line
  • Combine with a density meter and sample changer for lab measurements



Industries

  • Beverages

Specifications

Whisky For spirits with an extract content up to 5 g/L
(e.g. whisky, vodka, gin, tequila and rum)
Cognac For spirits with an extract content up to 20 g/L (e.g. cognac and brandy)
Measuring range
Alcohol35 to 65 %vol
(data can be displayed from 0 to 90 %vol)
pH value (optional)
0 to 14
Color (optional)0 to 120 EBC
Density (optional)0 to 3 g/cm3
Repeatability - standard deviation
Alcohol
Manual filling0.03 %vol
Automatic filling0.01 %vol
pH value (optional)0.02
Color (optional)0.1 EBC
Density (optional)0.00001 g/cm3 (DMA 4500) or
0.000001 g/cm3 (DMA 5000)
Additional information
Interfaces2 x RS-232 for printer, PC and DMA
ConnectionFor IBM-compatible keyboard and/or bar code reader

 Lab systemProduction system
Sample volume30 mL per measurement30 mL per measurement
Typical measuring
duration per sample
4 minutes (incl. filling)3 minutes (incl. filling)
Sample throughput 15 samples per hour20 samples per hour
Weightapprox. 53.4 kg
(117.7 lbs)
approx. 12.4 kg
(26 lbs)
Dimensions
(L x W x H)
590 x 690 x 530 mm
(23.2 x 27.2 x 20.9 inches)
