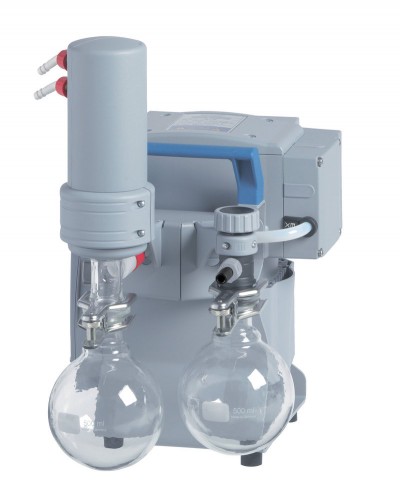

Chemistry vacuum systems
Chemistry vacuum systems
These
chemistry vacuum systems can be used in a wide range of applications for
evacuating or moving gases and vapours between containers in chemistry
and physics laboratories, e.g. as an alternative to water jet pumps and
rotary vane pumps. Compact construction, very quiet running, long
service life; diaphragm and valves are very easy to replace. Oil-free
vacuum.
- Includes chemistry diaphragm pump with high chemical resistance (parts in contact with media are made from PTFE compounds and similar)
- High pump volume capacity even at low pressures
- Standard gas ballast valve for working with condensates
- Solvent recovery almost 100% with exhaust waste vapour condenser
- Simple manual control
Model MZ 2C NT + 2 AK
Comprises an
MZ 2C NT chemistry diaphragm pump, mounted on pump support,
suction-side separator (AK) as particle protection and for collecting
liquid droplets, plus pressure-side separator (AK) for collecting
condensation from the pumped solvent vapours and to prevent backflow of
condensates.
Model MZ 2C NT + AK + EK
Includes an
MZ 2C NT chemistry diaphragm pump, mounted on pump support, suction-side
separator (AK) as particle protection and for collecting liquid
droplets, and insulated exhaust waste vapour condenser (EK) for
effective recovery of solvents to protect the environment and for
economical recycling.
Model MC 2C NT + AK SYNCHRO + EK
This
chemistry vacuum system enables two vacuum systems to be operated
simultaneously by a single vacuum pump. Comprises an MZ 2C NT chemistry
diaphragm pump, mounted on pump support, suction-side separator (AK) as
particle protection and for collecting liquid droplets. With
pressure-side, insulated exhaust waste vapour condenser (EK) for
effective recovery of solvents to protect the environment and for
economical recycling. Includes dual manual control and non-return valves
to prevent processes from interfering with each other.
Model MC 2C NT + 2 AK + M + D
MC 2 C NT
chemistry diaphragm pump with 2 AK separators, manometer and flow
control valve.
Model MD 1C + AK + EK
Comprises a
chemistry diaphragm pump, MD 1C, mounted on pump support, suction-side
separator (AK) as particle protection and to collect liquid droplets,
and insulated exhaust waste vapour condenser (EK) for effective recovery
of solvents to protect the environment and for economical recycling.
Model MD 4C NT + AK +EK
Comprises an
MD 4C NT chemistry diaphragm pump, mounted on pump support,
suction-side separator (AK) as particle protection and for collecting
liquid droplets, and insulated exhaust waste vapour condenser (EK) for
effective recovery of solvents to protect the environment and for
economical recycling.
Model MD 4C NT + AK SYNCHRO + EK
This
chemistry vacuum system enables two vacuum systems to be operated
simultaneously by a single vacuum pump. Comprises a chemistry diaphragm
pump, MD 4C, mounted on pump support, suction-side separator (AK) as
particle protection and to collect liquid droplets. With pressure-side,
insulated exhaust waste vapour condenser (EK) for effective recovery of
solvents to protect the environment and for economical recycling.
Includes dual manual control and non-return valves to prevent processes
from interfering with each other.
Note: Please visit our website for details on the full range of Vacuubrand chemistry vacuum systems.
| Model | Pk | VWR Catalog Number | Price | Quantity | |
|---|---|---|---|---|---|
|
|
MD 4C NT + AK + EK, UK-plug | 1 | 181-0195 | £3,190.00 | |
|
|
MD 4C NT + AK SYNCHRO + EK, with EU-plug | 1 | 181-1073 | £3,510.00 | |
|
|
MZ 2C NT + 2 AK, UK-plug | 1 | 181-1043 | £1,800.00 | |
|
|
MZ 2C NT + AK + EK, UK-plug | 1 | 181-1045 | £1,980.00 |
