General:
Our AutoResp™ systems consist of user-friendly software and USB instrumentation, allowing users to jump-start oxygen consumption measurements in aquatic organisms.

With automated measurements in up to eight chambers or two swim tunnels simultaneously, and the intermittent respirometry principle, the AutoResp™ system offers unbeaten efficiency and time resolution of aquatic respiration data.

Use AutoResp™ for automated measurements in micro chambers, swim tunnels, or any other kind of chambers, and monitor/regulate water temperature and oxygen saturation at the same time.


Features:
- Computerized intermittent respirometry
- USB instrument for data acquisition and device control
- AutoResp™ software for Windows 7/Vista/XP
- Change measure/flush cycles and methods on-the-fly
- On-the-fly calculations of oxygen consumption rates
- Post analysis (SMR, Pcrit, statistics, graphs etc.)
- Real time temperature compensation of oxygen data
- Real time solid blocking correction (swim speed in BL/sec)

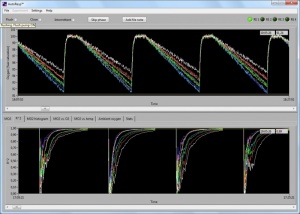

- More than 140 graphs with cursor
- Measure in 1-8 chambers using a single PC
- Operate 1-2 swim tunnels using a single PC
- Software auto configuration
- Control water temp or O2 in one or two different ambient tanks
- Automated ramp for temp or O2 setpoints
- Fiber optic or galvanic type oxygen sensing
- Oxygen units in % air sat., kPa or mgO2/l
- Software calculates oxygen solubility data
- Standard two-point sensor calibration
- All calculated data in one Excel file, all raw data in one text file
- All settings and calibration data saved


Minimum PC requirements:
OS: Windows 7
CPU: Duo core 2,4 GHz or similar
RAM: 4 GB
USB ports: 2-5 (system dependent)
Monitor: 1024 x 768 pixels


Optional:
Consider one of our six standard packages or DAQ-PACs.
Published papers
Optionals
Data sheet
Manual
User manual for AutoResp™ v2.1.3 AUTORESP

فروشنده: آزمیران
گارانتی اصالت و سلامت کالا
پشتیبانی ۷ روز هفته ۲۴ ساعته
۱۷,۹۰۰,۰۰۰ تومان
(موجود نیست)
