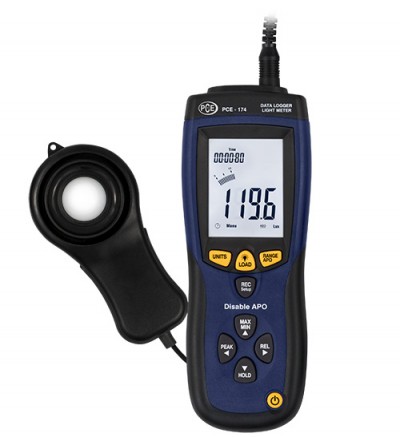

PCE-174 luxmeter with memory for measuring light with software and interface |
The PCE-174 luxmeter with memory for up to 16,000 readings is used for measuring light in industry, agriculture and research. The luxmeter with data logger is also used for determining illumination in the workplace, shop window displays and by designers. It meets with all international standards within the category for luxmeter with data loggers. The luxmeter with data logger displays measurement results in lux and FootCandle. Please consider that 1 FC is equal to 10.70 lux. The device automaticaly detects the peak value, when this value is retained for a minimum 10 µs. Thanks to the possibility of selecting the measurement range, the PCE-174 luxmeter with data logger converts into a high precision instrument. It is easy to use. This luxmeter with data logger can also be used by inexperienced personnel. Of course, when light is being measured, the ambient conditions must be taken into consideration. As such, the distance must be fixed and the angel between the luxmeter with data logger and the object being measured to obtain result of the highest repeatability. |
- Easy to use - Minimum, maximum and hold functions - Backlight display - 3 3/4 digit LCD; with 41 segment graphic bar - Displays readings in lux or FootCandle - Battery level indicator - Auto shut-off - The Overload indicator shows when the measurement range has been exceeded |
Technical specifications |
Ranges | 400.0 / 4000 / lux 40.00 / 400.0 klux 40.00 / 400.0 / 4000 / fc 40.00 kfc |
Resolution | 0,1 / 1 /10 / 100 lux 0,01 / 0,1 / 1 / 10 FootCandle |
Accuracy | ±5% of reading ±10 digits (<10,000 lux) ±10% of reading ±10 digits (>10,000 lux) |
Repeatability | ±3% |
Memory | 16.000 readings |
Rate of measurement | between 2 seconds and 9 hours |
Overload indicator | OL = Overload |
Screen refresh rate | 1.5 per second |
Operating conditions | 0 to 40ºC / 80% r.h. |
Display | 3¾ digit LCD |
Power | 9V battery |
Dimensions | Device: 203 x 75 x 50mm (width x height x depth) Light sensor: 115 x 60 x 20mm (width x height x depth) Cable length: 150cm |
Weight | 280g |
Standards | Safety: IEC-1010-1; EN 61010-1 EMV: EN 50081-1; EN 50082-1 corresponding with DIN 5031; DIN 5032 |
Delivery Contents:
1x PCE-174 luxmeter with data logger 1 x light sensor 1 x software, 1 x USB cable 1 x battery 1 x carrying case 1 x user's manual
|
