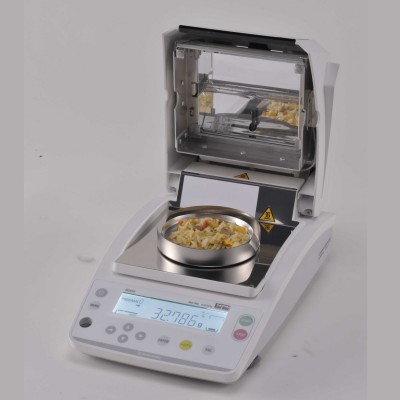

ترازوی رطوبت سنج دار 0.001 گرم تا60 گرم مدل MOC63u ساخت شرکت شیمادزو ژاپن
ترازوی رطوبت سنج دار 0.001 گرم تا60 گرم مدل MOC63u ساخت شرکت شیمادزو ژاپن
Excellent performance for a wide variety of applications in multiple industries
In many fields, a moisture analyzer is a
necessary tool for quality control requirements. With the MOC63u, you
can easily obtain accurate data. Simply place material on the pan and
shut the cover. The MOC63u will start to measure. The MOC63u adapts to
various materials and increases your work efficiency.
Features
Halogen heater
Long-life halogen heater provides quick
and accurate measurement. The temperature can be changed from 50 degrees
to 200 degree Celsius.
Large pan size: 95mm dia
Adapts to various materials.
Built-in USB port
If you are connecting to the PC by USB, you will need the USB driver. Please download the driver here.
Easy operation using a simple keypad
Features easy-to-operate software and
keypad layout. In addition, an automatic starting mode saves measurement
time, increasing your work efficiency. Operation simply requires
'putting material on the pan and shutting the cover'. Internal memory
can save 10 measurement conditions and 100 results. Various measurement
modes provide extra support.
Many measurement modes
Ending modes:
Automatic ending mode
Automatically ends measurement when moisture loss over the previous 30 seconds becomes smaller than specified percentage.
Timed ending mode
Automatically ends measurement when the specified amount of time has elapsed.
Alternative drying modes
Rapid drying mode
First dries with the highest temperature
for the specified period, then shifts to the specified temperature,
shortening measurement time.
Slow drying mode
Gently heats samples that might solidify at the surface or samples that reduce under high temperature.
Step drying mode
Allows step-by-step change in drying
conditions. This feature is useful when measuring samples that contain a
large amount of water.
Starting mode
Automatic starting mode
Starts measurement immediately after closing the lid. It saves time in repeat measurements.
WindowsDirect
Send balance data to Excel or other
Windows applications without installing additional data communication
software. By combining standard Auto print functions with typical
spreadsheet functions, even difficult applications can be easily
automated.
* RS-232C or USB cable interface is needed.
You can create graphs easily with WindowsDirect and Excel.
If you need templates, please download from here.
* RS-232C or USB cable interface is needed.
You can create graphs easily with WindowsDirect and Excel.
If you need templates, please download from here.
Specifications
| Capacity | 60g | |
|---|---|---|
| 0.02g | ||
| Minimum readability | 0.001g | |
| 0.01/0.1% (Selectable) | ||
| Repeatability | 0.15% (2g) | |
| 0.05% (5g) | ||
| 0.02% (10g) | ||
| Drying Heater | Straight type halogen heater | |
| Power | 400W | |
| Temperature range | 50-200°C (1°C increments) | |
| Setting | (There is a time restriction when exceeding 180°C.) | |
| Display | LCD with backlight | |
| Pan size | 95mm dia | |
| Dimension | (W×D×H) mm 202 × 336 × 157 | |
| Weight | 4kg | |
| Operational temperature and humidity range | 5 to 40°C, 85%RH or lower | |
| Measurement modes | Standard | |
| (Easy start/Automatic end/Timed end) | ||
| Rapid drying | ||
| (Easy start/Automatic end/Timed end) | ||
| Slow drying | ||
| (Easy start/Automatic end/Timed end) | ||
| Step drying | ||
| (Easy start/Automatic end/Timed end) | ||
| Timer setting | 1-120 minutes or continuous | |
| (max 12 hours) | ||
| Interface | RS-232C (9-pin connector) I/O port |
|
| |
USB port | |
| Measurement conditions data memory | 10 | |
| Data memory | 100 | |
Optional accessories
| Optional accessories | Printer EP-80 | |
|---|---|---|
| Printer EP-90 | ||
| In-use protection cover for display (5 pieces) | ||
| Aluminum sheet | ||
| Fiberglass sheet | ||
| Temperature calibration kit | ||
| Sample pan (SUS) | ||
| RS-232C cable | ||
| USB connection cable | ||
| Halogen heater for replacement | ||
