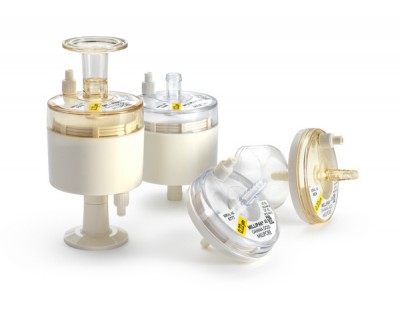

MPGL2GCL3 | Sterile Millipak®-200 Filter Unit 0.22 µm 1-1/2 in. TC/TC
MPGL2GCL3 | Sterile Millipak®-200 Filter Unit 0.22 µm 1-1/2 in. TC/TC
MSDS (material safety data sheet) or SDS, CoA and CoQ, dossiers, brochures and other available documents.
Product Information
Device ConfigurationGamma Gold Capsule
Connections, Inlet/Outlet38 mm (1-1/2 in.) Sanitary Flange
Maximum Differential Pressure, bar (psid)Forward: 4.1 bar (60 psid) @ 25 °C; 1.7 bar (25 psid) @ 80 °C; 0.35 bar (5 psid) @ 123 °C; Reverse: 0.7 bar (10 psid) @ 25 °C
Maximum Inlet Pressure, bar (psi)5.2 bar (75 psi) @ 25 °C
Good Manufacturing PracticesThese products are manufactured in a facility which adheres to FDA Good Manufacturing Practices.
Biological Information
Bacterial EndotoxinsAqueous extraction contains ≤0.5 EU/mL as determined by the Limulus Amebocyte Lysate (LAL) Test
MediaDurapore®
SterilitySterile
Sterilization3 autoclave cycles of 90 min @ 123 °C; not in-line steam sterilizable
Bacterial RetentionSamples were quantitatively retentive of a minimum Brevundimonas diminuta challenge concentration of 1 x 10⁷ CFU/cm² using ASTM® F838 methodology.
WettabilityHydrophilic
Physicochemical Information
Pore Size0.22 µm
Inlet ConnectionSanitary Flange
Outlet ConnectionSanitary Flange
Bubble Point at 23 °C≥3450 mbar (50 psig) air with water
Flow Rate19 L/min @ 2.8 bar ΔP
Gravimetric ExtractablesThe extractables level was equal to or less than 5 mg per sterilized device after a 200 mL flush and 24 hours in water at controlled room temperature.
Non-Fiber ReleasingThis product was manufactured with a Durapore® membrane which meets the criteria for a "non-fiber releasing" filter as defined in 21 CFR 210.3 (b) (6).
USP Bacterial EndotoxinsA sample aqueous extraction contains less than 0.5 EU/mL as determined by the Limulus Amebocyte Lysate (LAL) test.
Dimensions
Filtration Area1000 cm²
Process Volume100 L
Inlet Connection Diameter1-1/2 in.
Outlet Connection Diameter1-1/2 in.
Materials Information
Chemistry
  • Polyvinylidene Fluoride (PVDF)
Device Material
  • Polycarbonate
Support MaterialPolycarbonate
Vent Cap MaterialPolyvinylidene fluoride (PVDF)
Packaging Information
Material Size3
Material PackageBlister

Specifications
Oxidizable SubstancesWill meet the USP Oxidizable Substances Test requirements after a water flush of ≥200 mL
Description
Catalogue NumberMPGL2GCL3
Trade Name
  • Millipak®
DescriptionSterile Millipak®-200 Filter Unit 0.22 µm 1-1/2 in. TC/TC
